MCMC trace plots and density plots for AME/LAME model parameters

Source: R/trace_plot.R
trace_plot.Rd

Creates diagnostic plots for Markov Chain Monte Carlo (MCMC) samples from AME or LAME models. Displays trace plots to assess convergence and mixing, alongside density plots to visualize posterior distributions.

Usage

trace_plot(
  fit,
  params = c("all", "beta", "variance"),
  include = NULL,
  exclude = NULL,
  ncol = 3,
  nrow = NULL,
  burn.in = 0,
  thin = 1,
  title = NULL
)

Arguments

fit

An object of class "ame" or "lame" containing MCMC samples

params

Character vector specifying which parameters to plot: "beta" for regression coefficients, "variance" for variance components, or "all" (default) for both

include

Character vector of specific parameter names to include

exclude

Character vector of specific parameter names to exclude

ncol

Number of columns for plot layout (default 3)

nrow

Number of rows for plot layout (default NULL, determined automatically)

burn.in

Number of initial iterations to exclude as burn-in when calculating statistics (default 0, assumes burn-in already removed)

thin

Thinning interval for display (default 1, no thinning)

title

Optional title for the plot

Value

A ggplot2 object that can be further customized

Details

This function produces two types of diagnostic plots:

Trace plots

Show the evolution of parameter values across MCMC iterations. Good mixing is indicated by rapid exploration of the parameter space with no trends or stuck periods.

Density plots

Show the posterior distribution of parameters. Multiple modes may indicate identification issues or convergence problems.

The plots help diagnose:

  • Convergence: Has the chain reached the stationary distribution?

  • Mixing: Is the chain exploring the parameter space efficiently?

  • Autocorrelation: Are successive samples highly correlated?

Parameters displayed include:

  • Regression coefficients (beta)

  • Variance components (va, vb, cab, rho, ve)

Author

Cassy Dorff, Shahryar Minhas, Tosin Salau

Examples

if (FALSE) { # \dontrun{
# Fit an AME model
fit <- ame(Y, X, nscan = 10000, burn = 1000)

# Basic trace plots for all parameters
trace_plot(fit)

# Only regression coefficients

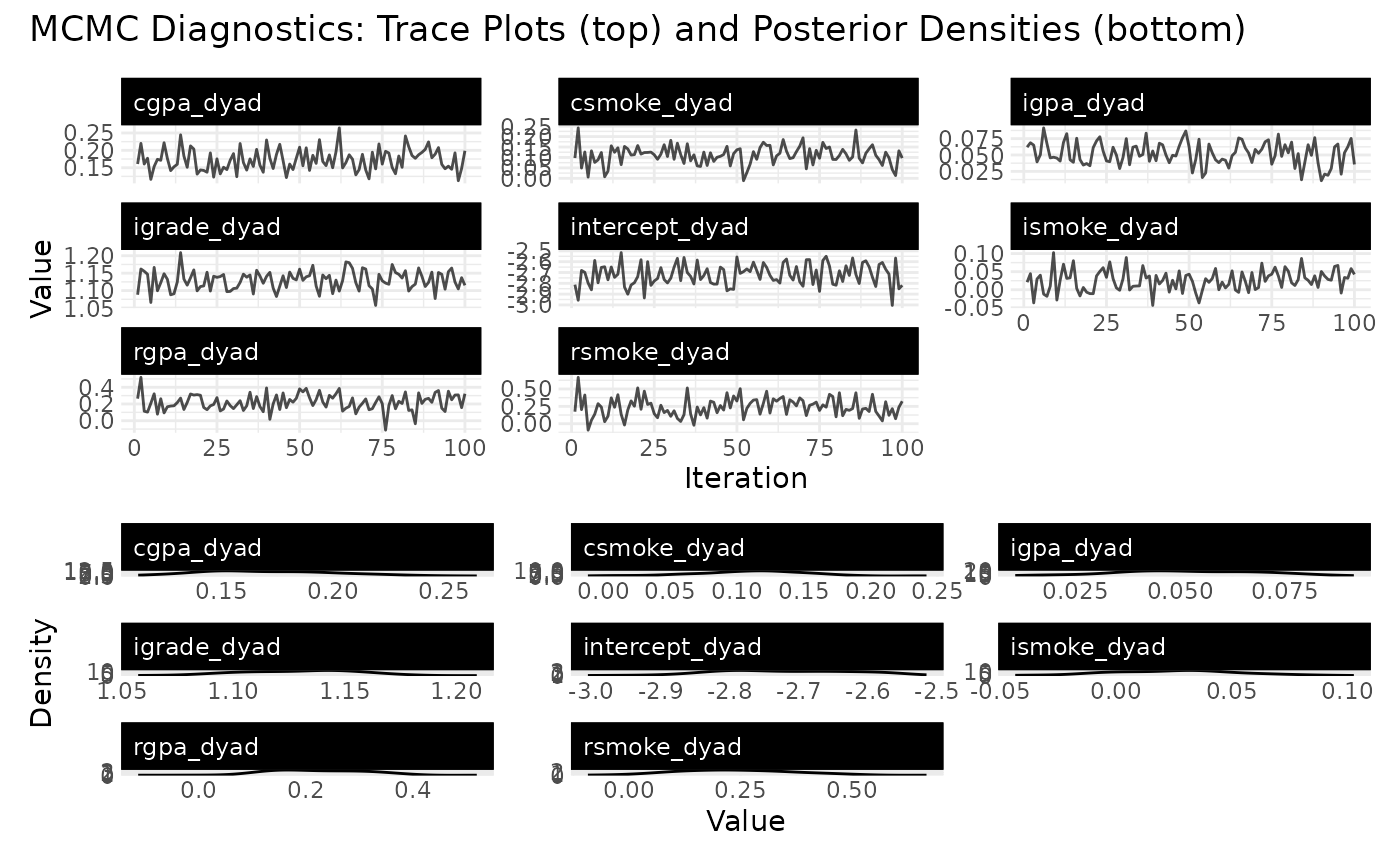

trace_plot(fit, params = "beta")

# Only variance components

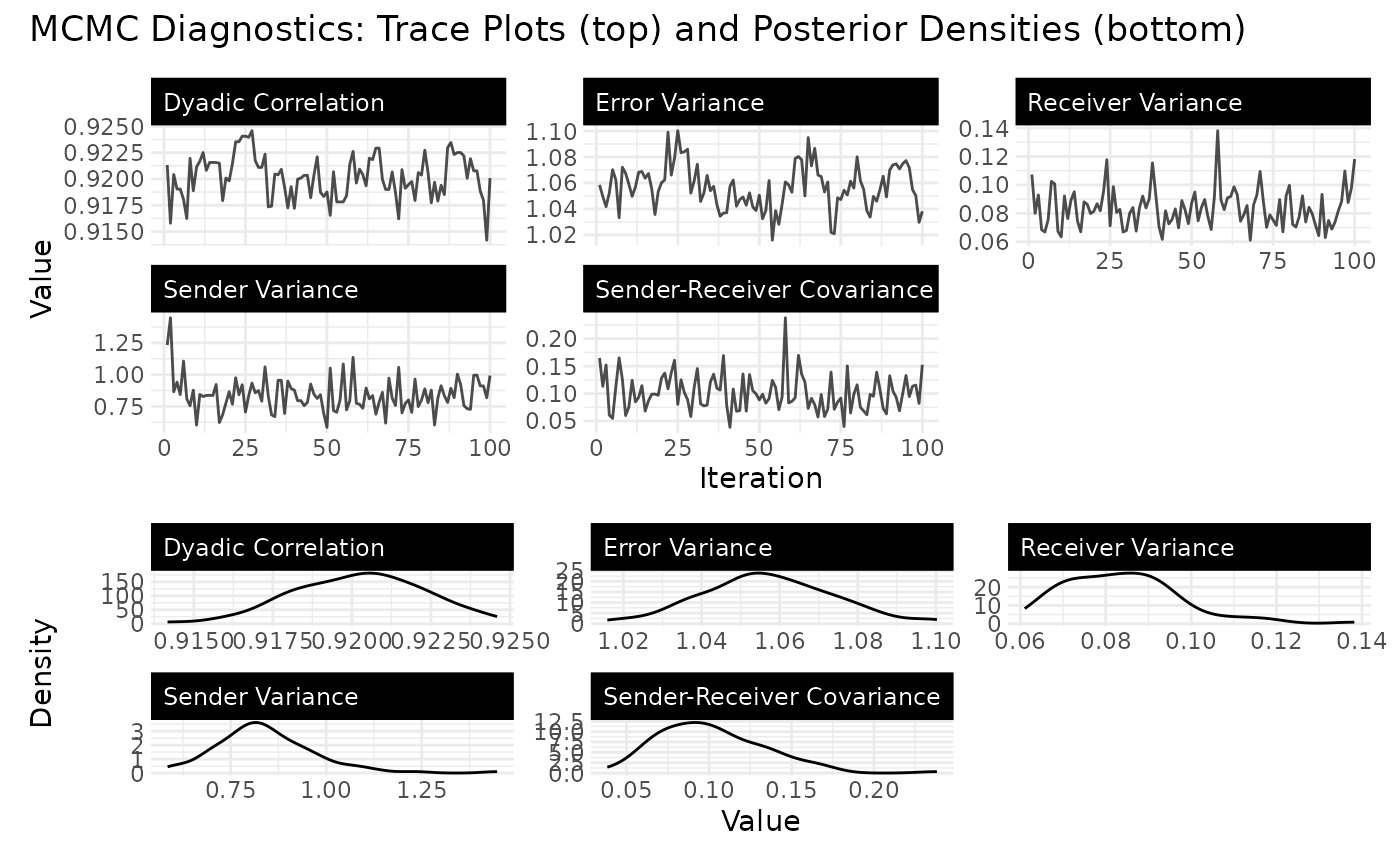

trace_plot(fit, params = "variance")

# Exclude intercept from plot
trace_plot(fit, exclude = "intercept")

# Thin the display for clearer visualization
trace_plot(fit, thin = 10)
} # }
