Assemble netify plot from components

Source: R/plot_helpers.R
assemble_netify_plot.Rd

Assembles a complete network plot from netify plot components. This function automatically adds all available layers (edges, nodes, text, labels, and their repel versions) in the correct order with appropriate scale resets between layers.

Usage

assemble_netify_plot(comp)

Arguments

comp

A netify_plot_components object returned from plot(..., return_components = TRUE)

Value

A complete ggplot object ready for display or further customization

Details

This function provides a convenient way to reassemble a plot from its components after extracting them with return_components = TRUE. It automatically:

  • Adds layers in the correct order (edges, nodes, text/text_repel, labels/label_repel)

  • Inserts scale resets between layers when necessary

  • Handles both standard and repel versions of text and label layers

  • Includes facets and themes if present

See also

plot.netify, netify_edge, netify_node

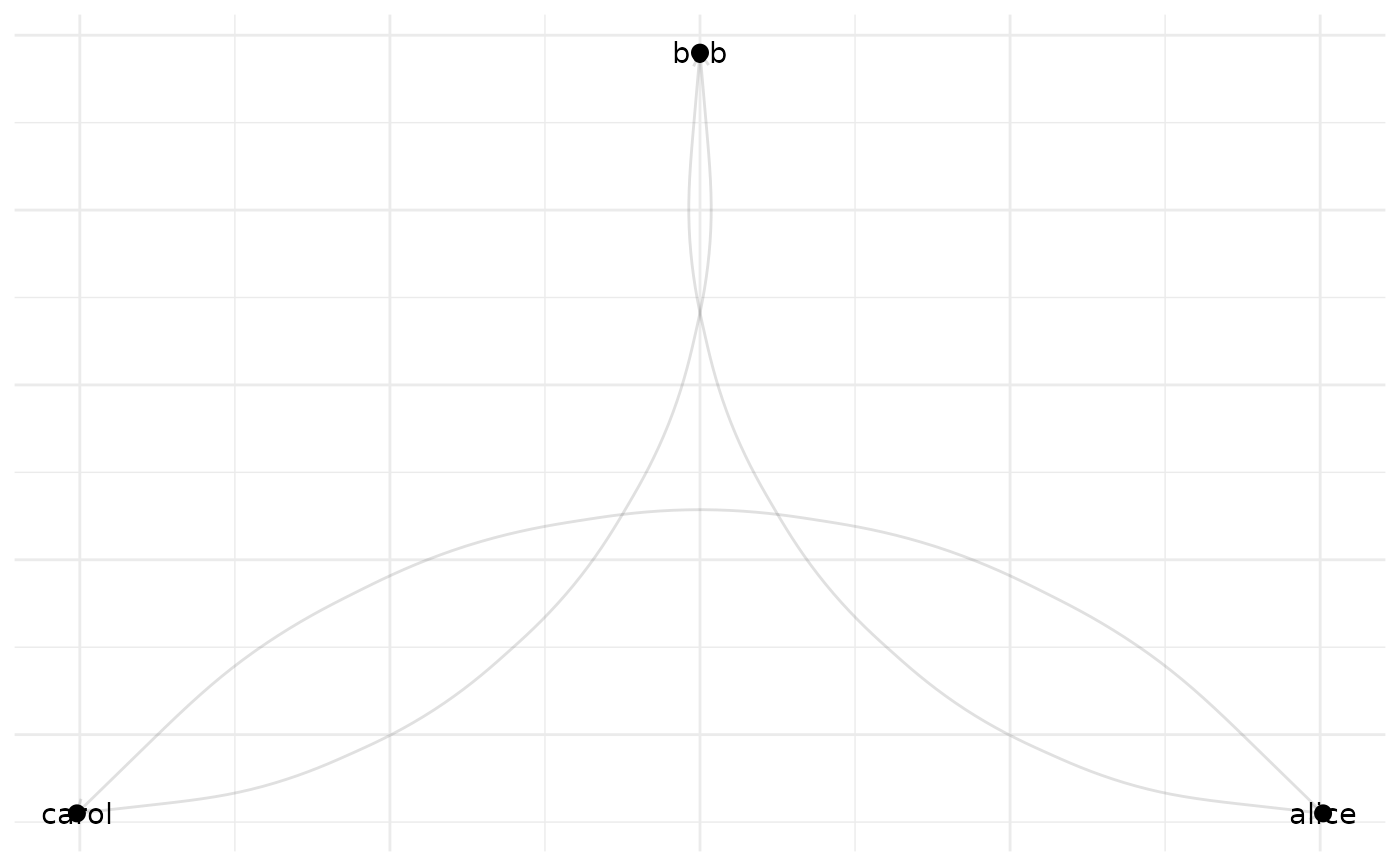

Examples

if (FALSE) { # \dontrun{
# create a netify object
net <- netify(my_data, actor1 = "from", actor2 = "to")

# get plot components
comp <- plot(net, return_components = TRUE)

# reassemble the plot
p <- assemble_netify_plot(comp)
print(p)
} # }
