Introduction

This vignette demonstrates how to analyze bipartite networks using the lame package. Bipartite networks consist of two distinct sets of nodes (e.g., people and organizations, students and courses, countries and treaties) where edges only occur between nodes from different sets.

The lame package provides two functions for bipartite network analysis:

  • ame(): For cross-sectional bipartite networks (single time point)
  • lame(): For longitudinal bipartite networks (multiple time points)

Both functions extend the Additive and Multiplicative Effects (AME) framework to handle rectangular adjacency matrices with separate latent factor representations for row and column nodes.

Bipartite Network Model

Mathematical Formulation

For bipartite networks, the model uses:

  • U: n_A × R_row matrix of latent positions for row nodes
  • V: n_B × R_col matrix of latent positions for column nodes
  • G: R_row × R_col interaction matrix mapping between latent spaces
  • Multiplicative term: U G V’ captures bipartite community structure

The model equation becomes:

yij=β′xij+ai+bj+ui′Gvj+ϵijy_{ij} = \beta'x_{ij} + a_i + b_j + u_i'Gv_j + \epsilon_{ij}

where i indexes row nodes (set A) and j indexes column nodes (set B).

Key Differences from Unipartite Models

  1. No dyadic correlation (ρ): Bipartite edges are inherently directed from row to column nodes
  2. Separate dimensions: R_row and R_col can differ for row and column latent spaces
  3. Rectangular structure: Different interpretations of network density and clustering
  4. Independent variance components: σ²_a for row effects, σ²_b for column effects (no covariance)

Cross-Sectional Analysis with ame()

For a single bipartite network observed at one time point, use the ame() function:

Simulate Cross-Sectional Bipartite Data

# Simulate a bipartite network (e.g., students to courses)
n_students <- 50  # Row nodes
n_courses <- 30   # Column nodes

# True latent dimensions
R_row_true <- 2
R_col_true <- 2

# Generate true latent positions
U_true <- matrix(rnorm(n_students * R_row_true), n_students, R_row_true)
V_true <- matrix(rnorm(n_courses * R_col_true), n_courses, R_col_true)

# True interaction matrix
G_true <- matrix(c(1, 0.5, 0.5, -1), R_row_true, R_col_true)

# Generate network
eta <- U_true %*% G_true %*% t(V_true)
prob <- plogis(eta)  # Convert to probabilities
Y_bipartite <- matrix(rbinom(n_students * n_courses, 1, prob),
                      n_students, n_courses)

# Add row and column names for clarity
rownames(Y_bipartite) <- paste0("Student", 1:n_students)
colnames(Y_bipartite) <- paste0("Course", 1:n_courses)

cat("Bipartite network dimensions:", dim(Y_bipartite), "\n")
cat("Network density:", mean(Y_bipartite), "\n")

Fit Cross-Sectional Bipartite Model

# Fit bipartite AME model
fit_cross <- ame(
  Y = Y_bipartite,
  mode = "bipartite",     # Specify bipartite mode
  R_row = 2,              # Latent dimensions for students
  R_col = 2,              # Latent dimensions for courses
  family = "binary",
  burn = 500,
  nscan = 2000,
  odens = 10,
  print = TRUE
)

# Summary of results
summary(fit_cross)

# The fitted model includes:
# - U: Posterior samples of student latent positions (50 × 2)
# - V: Posterior samples of course latent positions (30 × 2)
# - G: Posterior samples of interaction matrix (2 × 2)
# - APM: Additive row effects (student activity levels)
# - BPM: Additive column effects (course popularity)

Visualize Results

# Extract posterior means
U_post <- apply(fit_cross$U, c(1,2), mean)
V_post <- apply(fit_cross$V, c(1,2), mean)
G_post <- apply(fit_cross$G, c(1,2), mean)

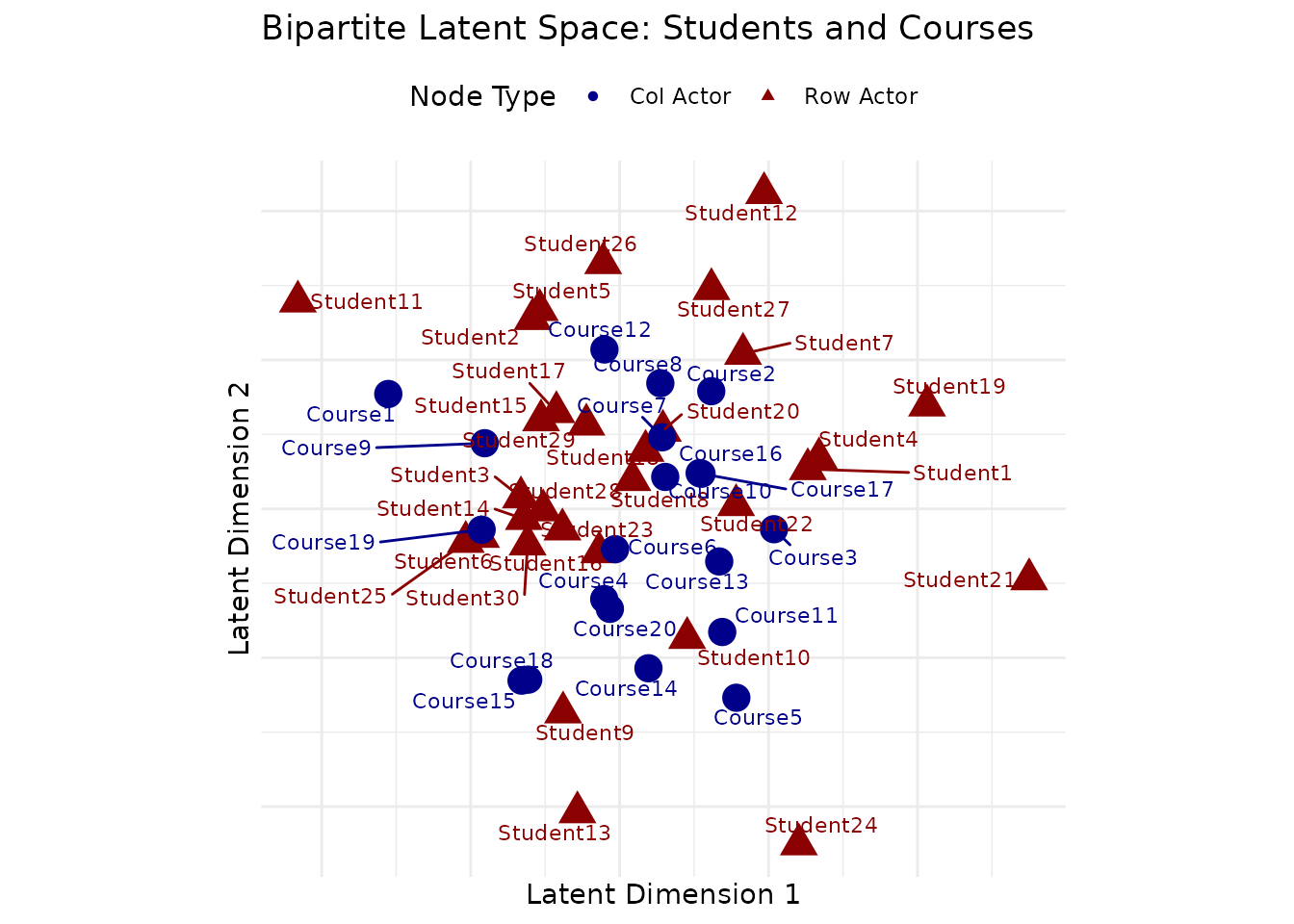

# Plot latent positions
par(mfrow = c(1, 2))

# Student positions
plot(U_post[,1], U_post[,2],
     xlab = "Dimension 1", ylab = "Dimension 2",
     main = "Student Latent Positions",
     pch = 19, col = "blue")

# Course positions
plot(V_post[,1], V_post[,2],
     xlab = "Dimension 1", ylab = "Dimension 2",
     main = "Course Latent Positions",
     pch = 19, col = "red")

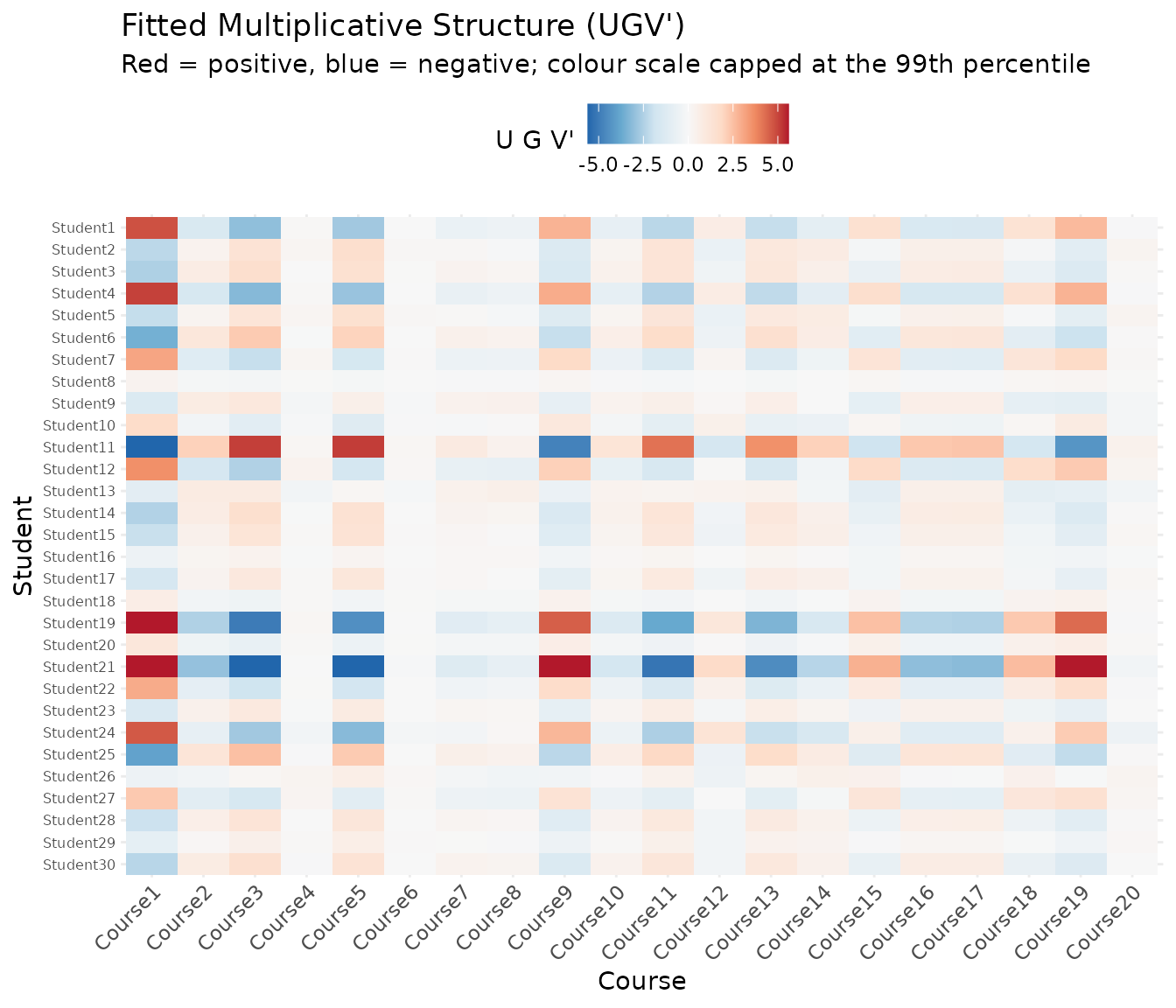

# Interaction matrix heatmap
library(ggplot2)
library(reshape2)
G_melt <- melt(G_post)
ggplot(G_melt, aes(x = Var2, y = Var1, fill = value)) +
  geom_tile() +
  scale_fill_gradient2(low = "blue", mid = "white", high = "red") +
  labs(title = "Interaction Matrix G",
       x = "Column Dimension", y = "Row Dimension") +
  theme_minimal()

Longitudinal Analysis with lame()

For bipartite networks observed over multiple time periods, use the lame() function:

Simulate Longitudinal Bipartite Data

# Simulate longitudinal bipartite networks
T <- 10  # Number of time periods
n_users <- 40    # Row nodes (e.g., users)
n_items <- 25    # Column nodes (e.g., items)

# Initialize storage
Y_list <- list()

# Generate evolving bipartite networks
for(t in 1:T) {
  # Add some temporal variation
  eta_t <- U_true %*% G_true %*% t(V_true) + rnorm(1, 0, 0.2)
  prob_t <- plogis(eta_t)

  # Sample first 40 rows and 25 columns for rectangular structure
  Y_list[[t]] <- matrix(rbinom(n_users * n_items, 1, prob_t[1:n_users, 1:n_items]),
                        n_users, n_items)

  rownames(Y_list[[t]]) <- paste0("User", 1:n_users)
  colnames(Y_list[[t]]) <- paste0("Item", 1:n_items)
}

cat("Longitudinal bipartite network:\n")
cat("  Time periods:", length(Y_list), "\n")
cat("  Dimensions per period:", dim(Y_list[[1]]), "\n")
cat("  Average density:", mean(sapply(Y_list, mean)), "\n")

Fit Static Longitudinal Bipartite Model

# Fit static bipartite model (constant effects over time)
fit_static <- lame(
  Y = Y_list,
  mode = "bipartite",     # Specify bipartite mode
  R_row = 2,              # Latent dimensions for users
  R_col = 2,              # Latent dimensions for items
  family = "binary",
  dynamic_uv = FALSE,     # Static latent positions
  dynamic_ab = FALSE,     # Static additive effects
  burn = 1000,
  nscan = 3000,
  odens = 10
)

summary(fit_static)

Fit Dynamic Longitudinal Bipartite Model

# Fit dynamic bipartite model (time-varying effects)
fit_dynamic <- lame(
  Y = Y_list,
  mode = "bipartite",     # Specify bipartite mode
  R_row = 2,              # Latent dimensions for users
  R_col = 2,              # Latent dimensions for items
  family = "binary",
  dynamic_uv = TRUE,      # Time-varying latent positions
  dynamic_ab = TRUE,      # Time-varying additive effects
  dynamic_G = FALSE,      # Keep G constant (can also be dynamic)
  burn = 2000,
  nscan = 5000,
  odens = 25,
  prior = list(
    rho_uv_mean = 0.9,    # High persistence for latent positions
    rho_ab_mean = 0.8     # Moderate persistence for additive effects
  )
)

summary(fit_dynamic)

Dynamic Case Details

When dynamic_uv=TRUE, the latent positions evolve over time:

Ui,k,t=ρuvUi,k,t−1+ϵi,k,tU_{i,k,t} = \rho_{uv} U_{i,k,t-1} + \epsilon_{i,k,t}Vj,k,t=ρuvVj,k,t−1+ηj,k,tV_{j,k,t} = \rho_{uv} V_{j,k,t-1} + \eta_{j,k,t}

When dynamic_G=TRUE, the interaction matrix also evolves:

Gk,l,t=ρGGk,l,t−1+ξk,l,tG_{k,l,t} = \rho_G G_{k,l,t-1} + \xi_{k,l,t}

The AR(1) parameter ρ controls temporal persistence (0 = independent, 1 = perfect persistence).

Visualize Temporal Evolution

# For dynamic models, visualize evolution over time
# Extract posterior means for first and last time periods
U_t1 <- apply(fit_dynamic$U[,,1,], c(1,2), mean)
U_tT <- apply(fit_dynamic$U[,,T,], c(1,2), mean)

# Plot evolution of user positions
par(mfrow = c(1, 2))
plot(U_t1[,1], U_t1[,2],
     xlab = "Dimension 1", ylab = "Dimension 2",
     main = "User Positions: Period 1",
     pch = 19, col = "blue", xlim = c(-3,3), ylim = c(-3,3))

plot(U_tT[,1], U_tT[,2],
     xlab = "Dimension 1", ylab = "Dimension 2",
     main = paste("User Positions: Period", T),
     pch = 19, col = "darkblue", xlim = c(-3,3), ylim = c(-3,3))

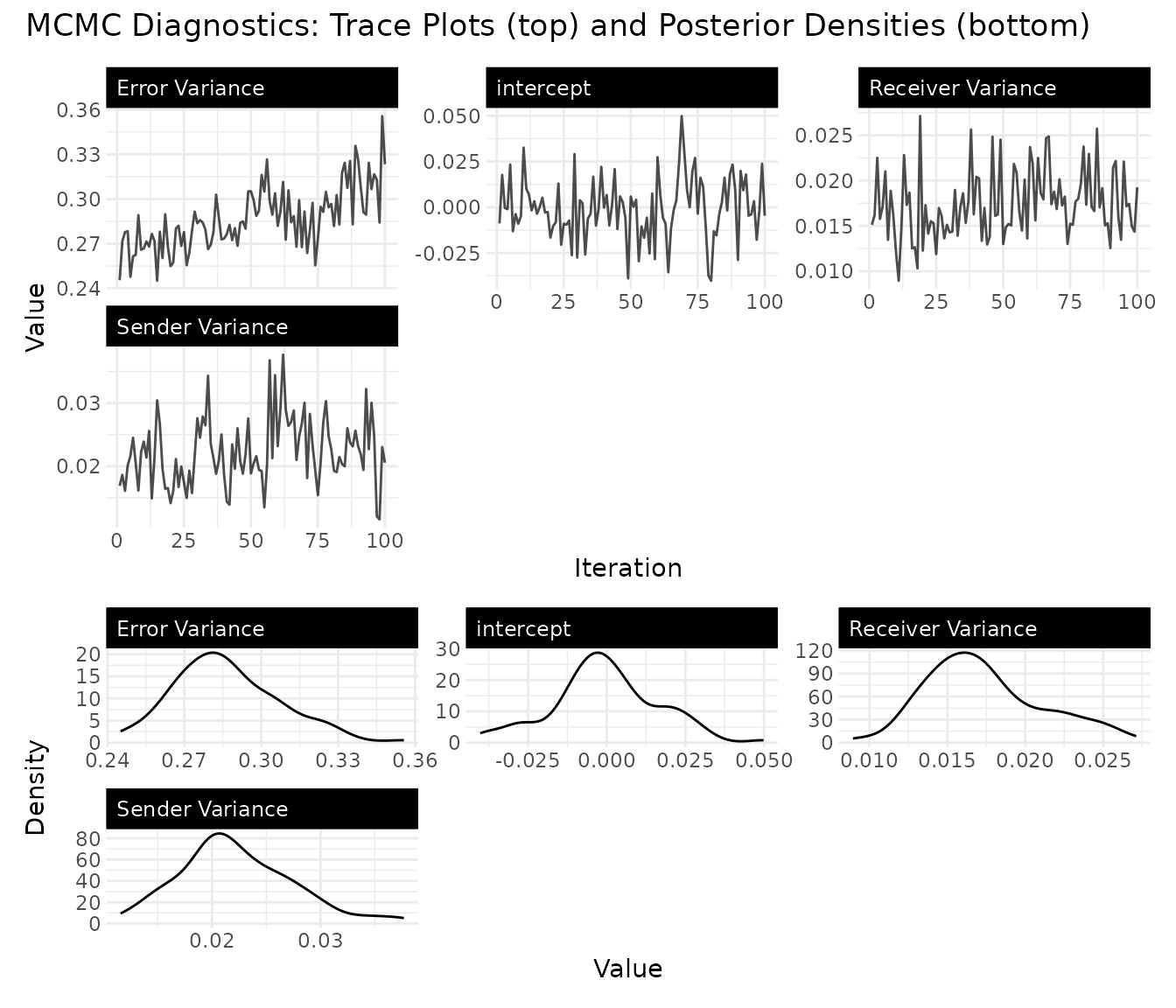

# Trace plot for temporal correlation
trace_plot(list(rho_uv = fit_dynamic$rho_uv))

Model Comparison and Selection

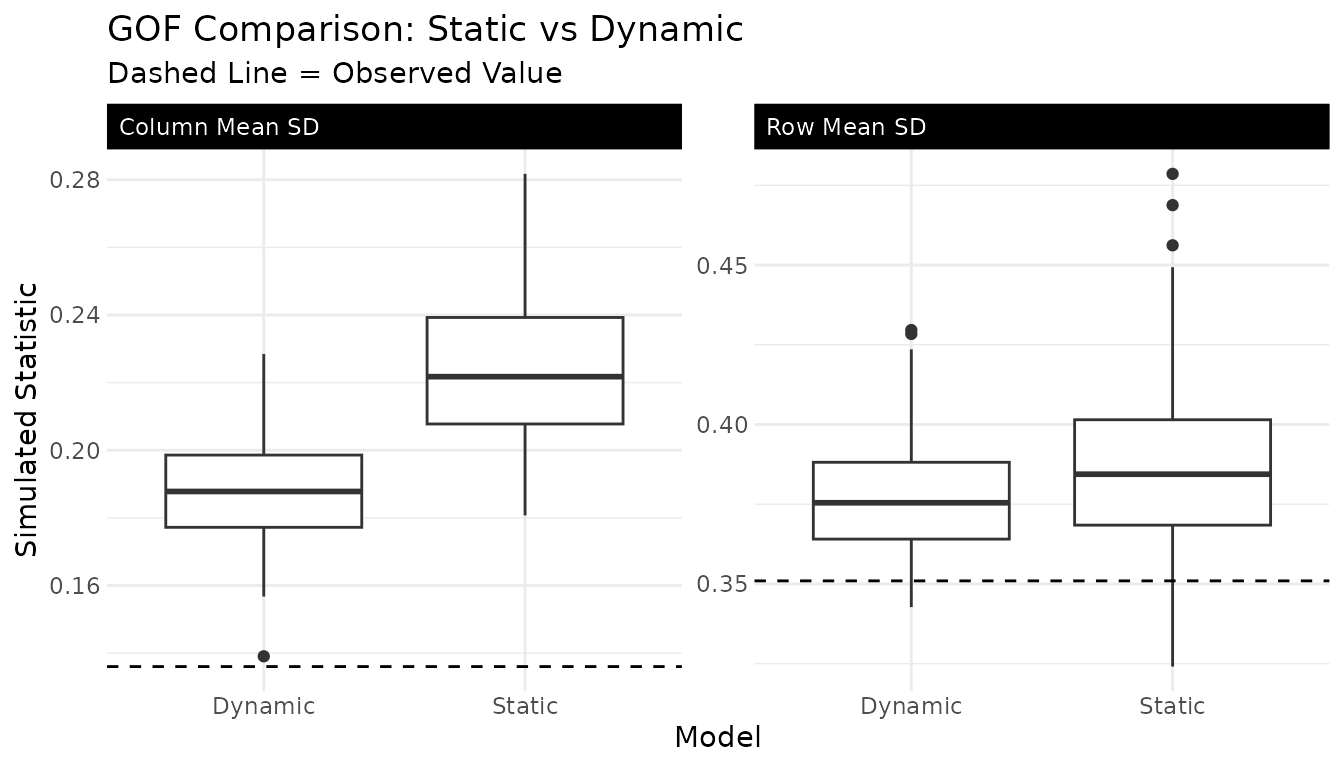

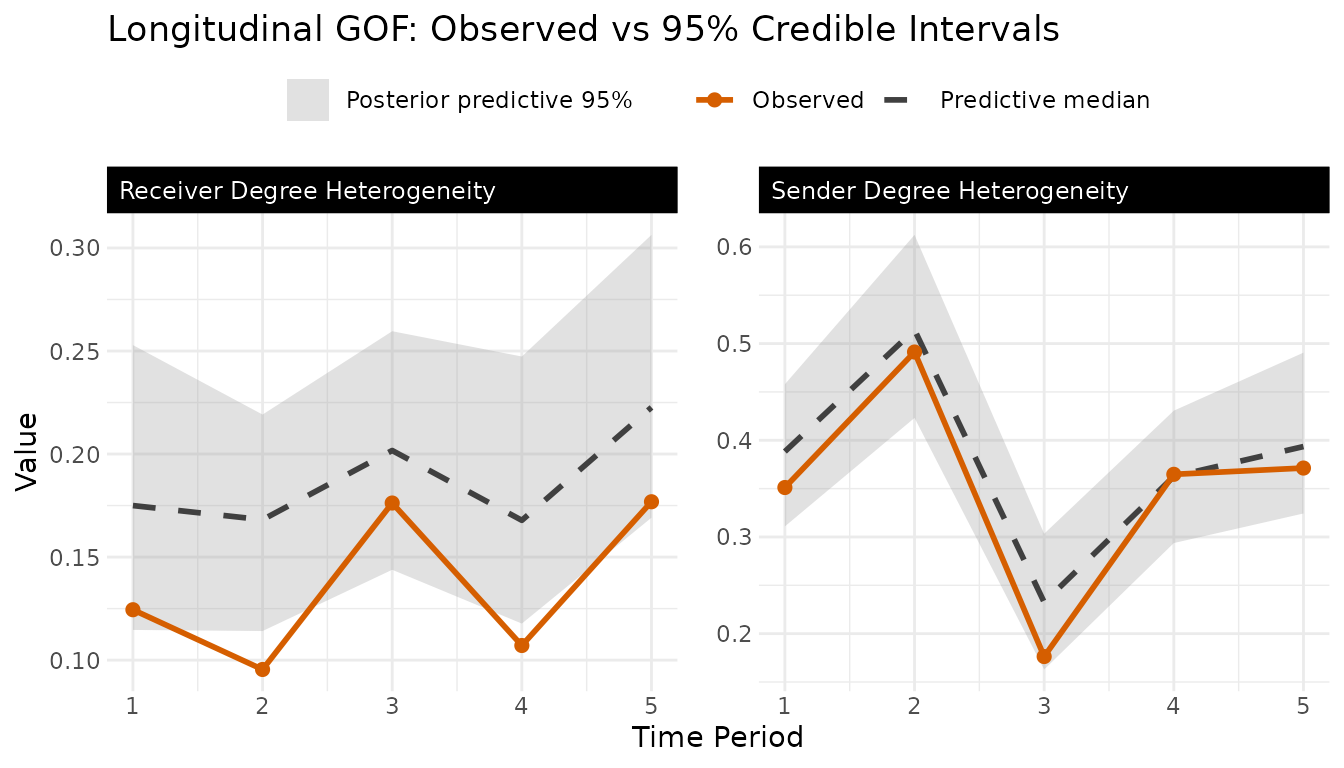

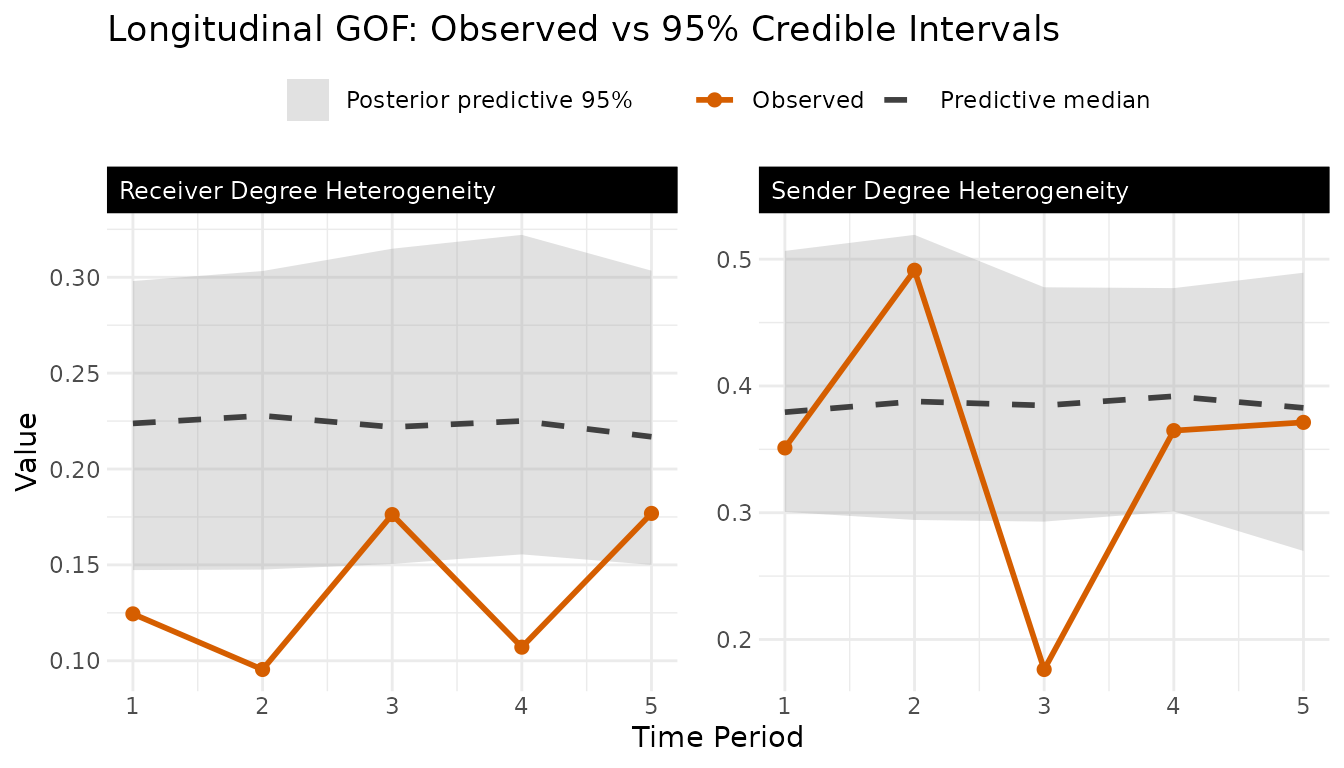

Compare Static vs Dynamic Models

# Compare model fit using GOF statistics
gof_static <- fit_static$GOF
gof_dynamic <- fit_dynamic$GOF

# Plot GOF comparison
par(mfrow = c(2, 2))
boxplot(gof_static$rowmean, gof_dynamic$rowmean,
        names = c("Static", "Dynamic"),
        main = "Row Mean GOF")

boxplot(gof_static$colmean, gof_dynamic$colmean,
        names = c("Static", "Dynamic"),
        main = "Column Mean GOF")

boxplot(gof_static$density, gof_dynamic$density,
        names = c("Static", "Dynamic"),
        main = "Density GOF")

# For bipartite networks, four-cycle counts are particularly informative
boxplot(gof_static$four_cycles, gof_dynamic$four_cycles,
        names = c("Static", "Dynamic"),
        main = "Four-Cycle GOF")

Choosing Dimensions

# Fit models with different dimensions
dims_to_test <- list(
  c(1, 1),  # R_row = 1, R_col = 1
  c(2, 2),  # R_row = 2, R_col = 2
  c(3, 2),  # R_row = 3, R_col = 2
  c(2, 3)   # R_row = 2, R_col = 3
)

gof_results <- list()
for(i in 1:length(dims_to_test)) {
  fit_temp <- ame(
    Y = Y_bipartite,
    mode = "bipartite",
    R_row = dims_to_test[[i]][1],
    R_col = dims_to_test[[i]][2],
    family = "binary",
    burn = 500,
    nscan = 1000,
    print = FALSE
  )
  gof_results[[i]] <- c(
    R_row = dims_to_test[[i]][1],
    R_col = dims_to_test[[i]][2],
    gof_mean = mean(abs(fit_temp$GOF$density))
  )
}

# Display results
do.call(rbind, gof_results)

Practical Considerations

When to Use Bipartite Models

Use bipartite models when:

  1. Distinct node types: Your network has two fundamentally different types of nodes
  2. No within-type edges: Connections only exist between types, not within
  3. Rectangular structure: The adjacency matrix is inherently non-square
  4. Different role behaviors: Row and column nodes have different generative processes

Interpretation Guidelines

  • U positions: Represent row node preferences/characteristics in latent space
  • V positions: Represent column node attributes in latent space
  • G matrix: Maps how row and column latent dimensions interact
  • Positive G elements: Indicate affinity between corresponding dimensions
  • Negative G elements: Indicate disaffinity between dimensions
  • Additive effects: Capture overall activity (rows) and popularity (columns)

Convergence Diagnostics

As usual, check for convergence:

# Check effective sample sizes
fit_cross$ESS

# Visual convergence diagnostics
trace_plot(list(
  U = fit_cross$U[1,1,],  # First user, first dimension
  V = fit_cross$V[1,1,],  # First item, first dimension
  G = fit_cross$G[1,1,],  # First element of G
  sigma_a = fit_cross$VC[1,1,],  # Row variance
  sigma_b = fit_cross$VC[2,2,]   # Column variance
))
