extract label layer from netify plot components

extracts the label layer from a netify plot components object. labels display actor names or other text annotations with background boxes, making them more visible against complex network backgrounds.

Usage

netify_label(comp)

Arguments

comp

a netify_plot_components object returned from plot(..., return_components = TRUE)

Value

a custom object of class "netify_label" that can be added to a ggplot object using the + operator. the object contains the label layer with all its aesthetic mappings and data.

See also

plot.netify, netify_text, assemble_netify_plot

Author

cassy dorff, shahryar minhas

Examples

# \donttest{
# create a netify object
mat <- matrix(c(NA, 1, 0, 0, NA, 1, 1, 0, NA), 3, 3,
    dimnames = list(c("alice", "bob", "carol"),
                    c("alice", "bob", "carol")))
net <- new_netify(mat, symmetric = FALSE)

# get plot components with labels
comp <- plot(net, add_label = TRUE, return_components = TRUE)

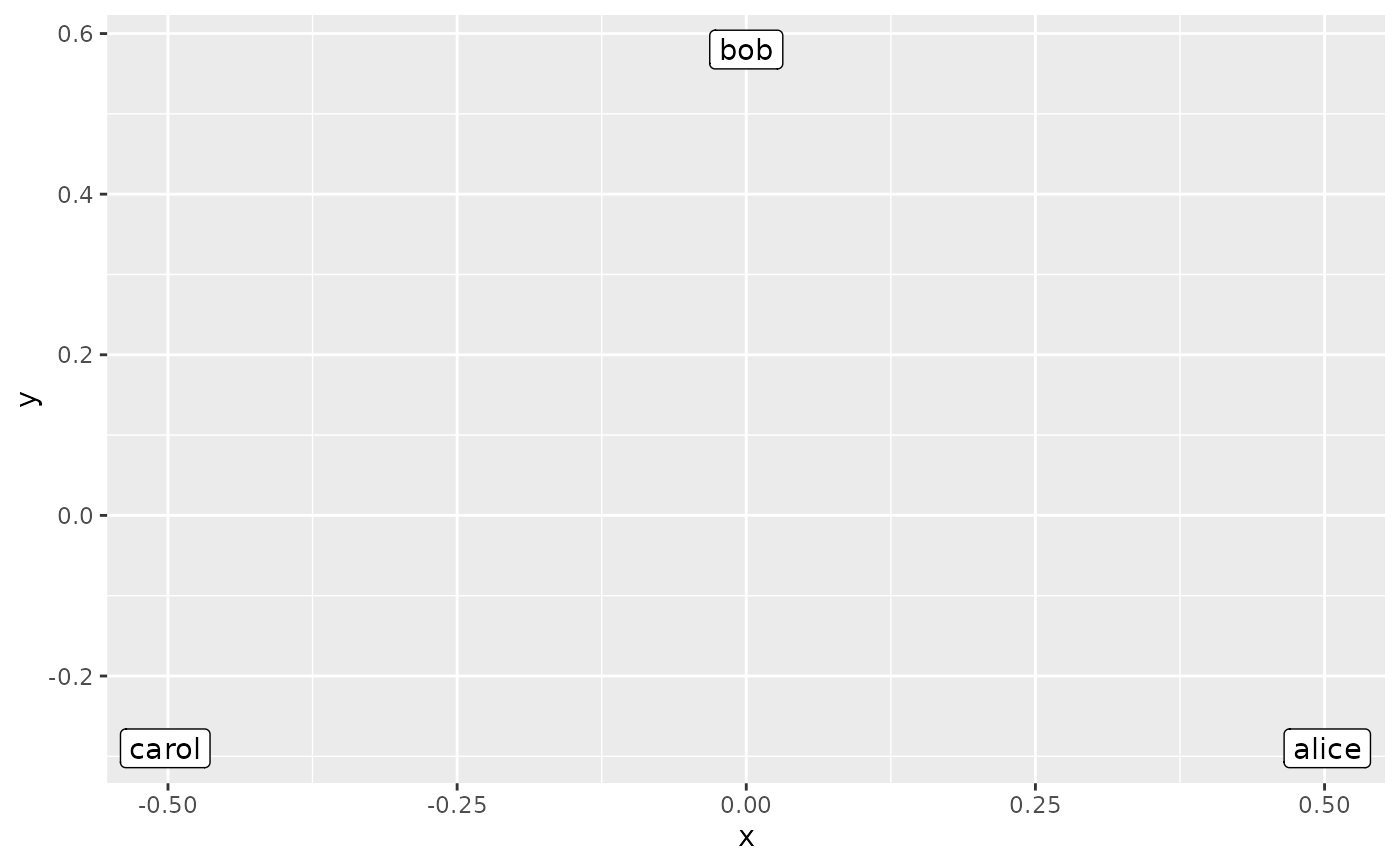

# build custom plot with labels
library(ggplot2)
ggplot() +
    netify_label(comp)

# }
