Extract text layer from netify plot components

Source: R/plot_helpers.R
netify_text.Rd

Extracts the text label layer from a netify plot components object. Text labels display actor names or other text annotations directly on the plot without background boxes.

Usage

netify_text(comp)

Arguments

comp

A netify_plot_components object returned from plot(..., return_components = TRUE)

Value

A custom object of class "netify_text" that can be added to a ggplot object using the + operator. The object contains the text layer with all its aesthetic mappings and data.

See also

plot.netify, netify_label, assemble_netify_plot

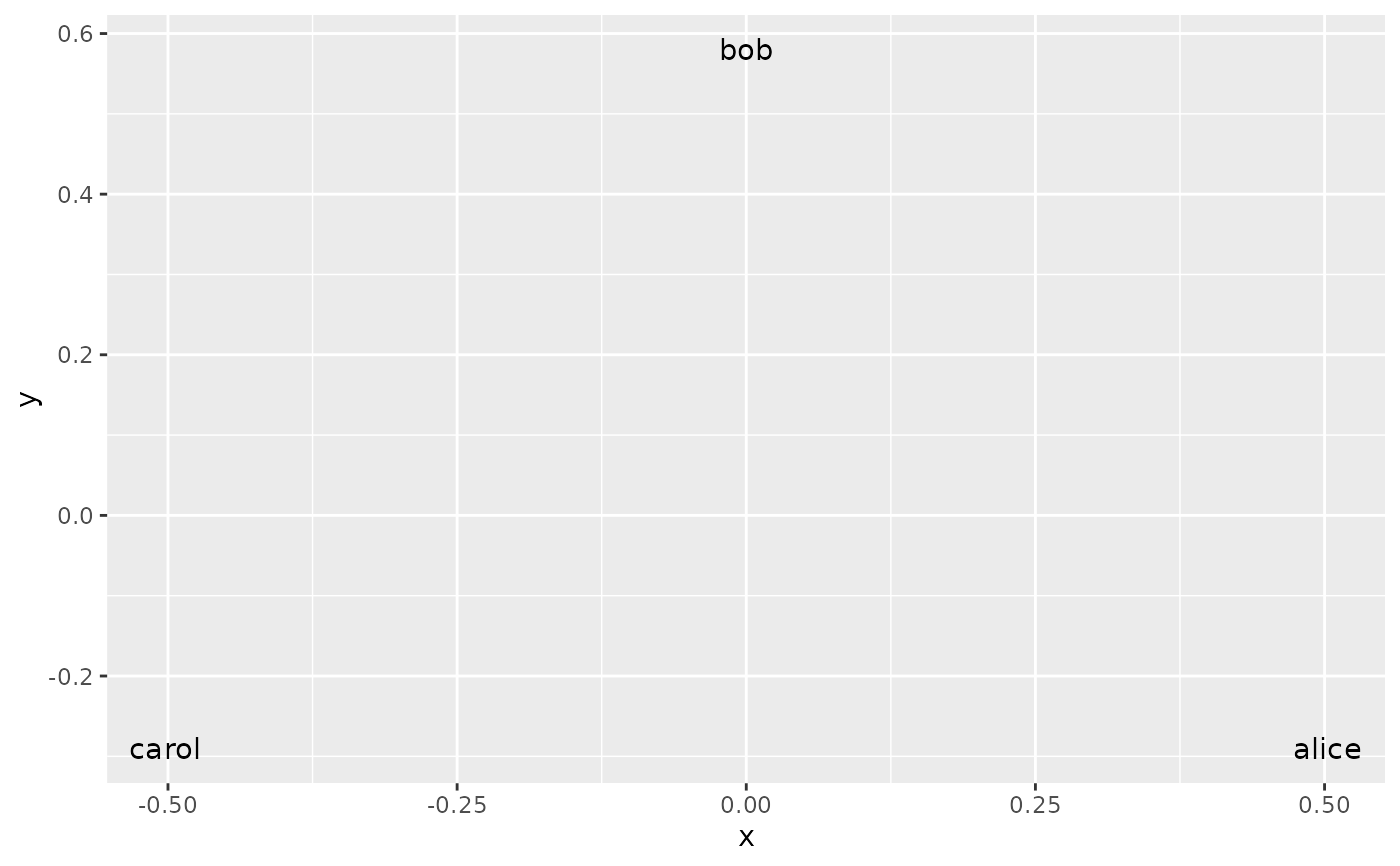

Examples

if (FALSE) { # \dontrun{
# create a netify object
net <- netify(my_data, actor1 = "from", actor2 = "to")

# get plot components with text labels
comp <- plot(net, add_text = TRUE, return_components = TRUE)

# build custom plot with text
library(ggplot2)
ggplot() + netify_text(comp)
} # }
